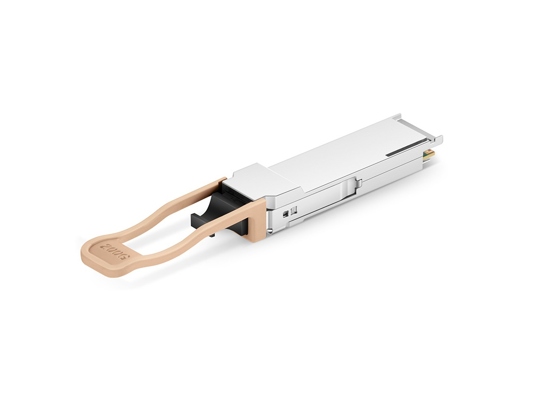

200G-QSFP56-SR4 100m 850nm MPO-12/UPC MMF Transceiver Module,Compatible with Cisco,Arista,Juniper,NVIDIA/Mellanox,IBM,Dell,HPE
Max. Data Rate:200Gbps
Media Type:MMF
Form Factor:QSFP56
Wavelength:850nm
Modulation:4x25G NRZ
Max. Cable Distance: 70m@OM3/100m@OM4
Core Size:50/125µm
Connector:MTP/MPO-12 Male
Transmitter Type: VCSEL
Receiver Type:PIN
DDM/DOM:Supported
Inbuilt FEC: Yes
CDR (Clock and Data Recovery):TX & RX Built-in CDR
Commercial Temperature Range:0 to 70°C (32 to 158°F)
TX Power:-6.2~-3.9dBm
Receiver Sensitivity:<-6.3dBm
Max. Power Consumption:≤4.5W
Receiver Overload:5dBm
Extinction Ratio:>3dB
Power Budget:3.3dB
EMC (Electro Magnetic Compatibility):Supported
Protocols: IEEE 802.3bs, QSFP56 MSA, SFF-8665, SFF-8636
Warranty:5 Years
