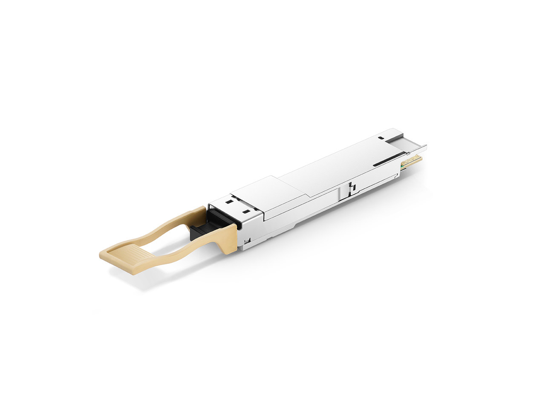

400G-QDD-SR8 100m 850nm MPO-16/APC MMF Transceiver Module,Compatible with Cisco,Arista,Juniper,NVIDIA/Mellanox,IBM,Dell,HPE

$218.00 USD

Sale Sold out

Max. Data Rate:400Gbps

Media Type:MMF

Form Factor:QSFP-DD

Wavelength:850nm

Modulation:8x50G PAM4

Max. Cable Distance: 70m@OM3/100m@OM4

Core Size: 50/125µm

Connector: MPO-16/APC

Transmitter Type: VCSEL

Receiver Type:PIN

DDM/DOM:Supported

Inbuilt FEC: Yes

CDR (Clock and Data Recovery):TX & RX Built-in CDR

Commercial Temperature Range:0 to 70°C (32 to 158°F)

TX Power:-6.2~-3.9dBm

Receiver Sensitivity:<-6.3dBm

Max. Power Consumption:≤10W

Receiver Overload:4dBm

Extinction Ratio:>3dB

Power Budget:1.8dB

EMC (Electro Magnetic Compatibility):Supported

Protocols: QSFP-DD MSA, CMIS 4.0, IEEE 802.3cd

Warranty:5 Years
