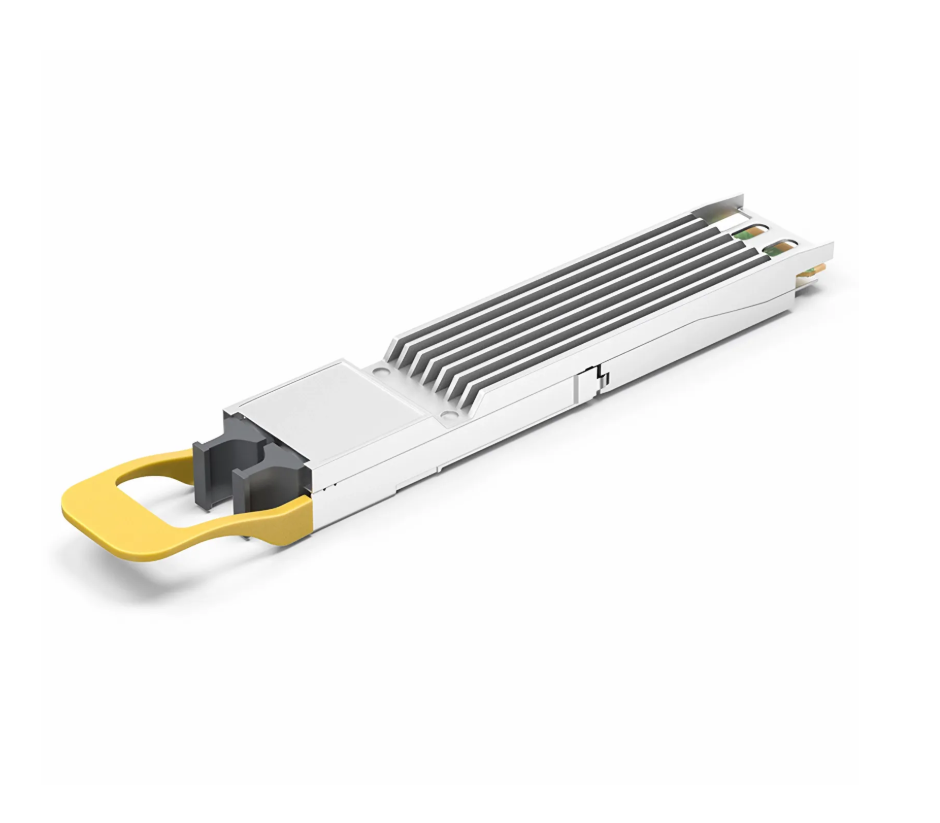

800G-OSFP-SR8 50m 850nm Dual MPO-12/APC MMF Transceiver Module, RHS/Flat Top,Compatible with NVIDIA
Max. Data Rate:850Gbps
Media Type:MMF
Form Factor: Twin-port OSFP IHS/Finned Top
Wavelength:850nm
Modulation:Dual 4x100G PAM4
Max. Cable Distance: 30m@OM3/50m@OM4/50m@OM5
Core Size: 50/125µm
Connector: Dual MPO-12/APC
Transmitter Type: VCSEL
Receiver Type:PIN
DDM/DOM:Supported
Inbuilt FEC: Yes
CDR (Clock and Data Recovery):TX & RX Built-in CDR
Commercial Temperature Range:0 to 70°C (32 to 158°F)
TX Power:-4.5~-3.9dBm
Receiver Sensitivity:<-6.2dBm
Max. Power Consumption:≤16W
Receiver Overload:4dBm
Extinction Ratio:>2.5dB
Power Budget:1.6dB
EMC (Electro Magnetic Compatibility):Supported
Protocols: OSFP MSA, CMIS 5.0, IEEE 802.3db, IEEE 802.3ck
Warranty:5 Years
