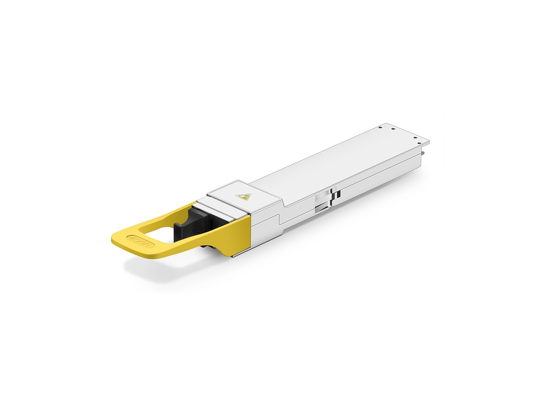

400G-OSFP-SR4 50m 850nm MPO-12/APC MMF Transceiver Module, RHS/Flat Top,Compatible with NVIDIA

$658.00 USD

Sale Sold out

Max. Data Rate:425Gbps

Media Type:MMF

Form Factor: Single-port OSFP RHS/Flat Top

Wavelength:850nm

Modulation:4x100G PAM4

Max. Cable Distance: 30m@OM3/50m@OM4/50m@OM5

Core Size: 50/125µm

Connector: MPO-12/APC

Transmitter Type: VCSEL

Receiver Type:PIN

DDM/DOM:Supported

Inbuilt FEC: Yes

CDR (Clock and Data Recovery):TX & RX Built-in CDR

Commercial Temperature Range:0 to 70°C (32 to 158°F)

TX Power:-4.5~-3.9dBm

Receiver Sensitivity:<-6.2dBm

Max. Power Consumption:≤10W

Receiver Overload:4dBm

Extinction Ratio:>2.5dB

Power Budget:1.6dB

EMC (Electro Magnetic Compatibility):Supported

Protocols: OSFP MSA Rev 5.0、IEEE 802.3ck、IEEE 802.3-2022

Warranty:5 Years
